Product Description
· Motor: shaded pole motor structure. Impedance protection.
· Withstanding Voltage: Voltage leakage 0.5mA. withstand voltage 1800V/min.
· Insulation Class B, protection class IP54.
· Fan rotation: counter-clockwise as viewed from the direction of the blades.
Technical parameters
| Type | Maximum air flow (m3/h) | Rated voltage (V) | Frequency (Hz) | Noise DB (A) | Ball Bearing (B) |
| EA11025HSL2 | 61 | 230 | 50 | 35 | – |
| EA11025HBL2 | 63 | 230 | 50 | 35 | B |
| EA11025HSL3 | 61 | 380 | 50 | 35 | – |
| EA11025HBL3 | 63 | 380 | 50 | 35 | B |
| Type | Bearings (S) | Power (Watt) | Speed (Min) | Ambient Temperature (℃) | Weight (g) |
| EA11025HSL2 | S | 13 | 2050 | -10..+70 | 260 |
| EA11025HBL2 | – | 13 | 2100 | -20..+85 | 260 |
| EA11025HSL3 | S | 13 | 2050 | -10..+70 | 260 |
| EA11025HBL3 | – | 13 | 2100 | -20..+80 | 260 |

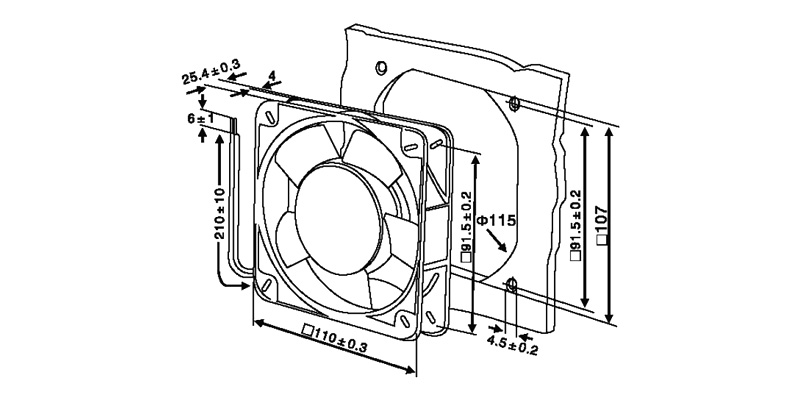

Dimensions
