Product Description
· Motor: shaded pole motor structure. Impedance protection.
· Withstanding Voltage: Voltage leakage 0.5mA. withstand voltage 1800V/min.
· Insulation Class B, protection class IP54.
· Fan rotation: counter-clockwise as viewed from the direction of the blades.
Technical parameters
| Type | Maximum air flow (m3/h) | Rated voltage (V) | Frequency (Hz) | Noise DB (A) | Ball Bearing (B) |
| EA12038HSL2 | 135 | 230 | 50 | 43 | – |
| EA12038HBL2 | 138 | 230 | 50 | 43 | B |
| EA12038HSL3 | 135 | 380 | 50 | 43 | – |
| EA12038HBL3 | 138 | 380 | 50 | 43 | B |
| Type | Bearings (S) | Power (Watt) | Speed (Min) | Ambient Temperature (℃) | Weight (g) |
| EA12038HSL2 | S | 21 | 2350 | -10..+70 | 508 |
| EA12038HBL2 | – | 21 | 2400 | -20..+85 | 508 |
| EA12038HSL3 | S | 21 | 2350 | -10..+70 | 508 |
| EA12038HBL3 | – | 21 | 2400 | -20..+80 | 508 |

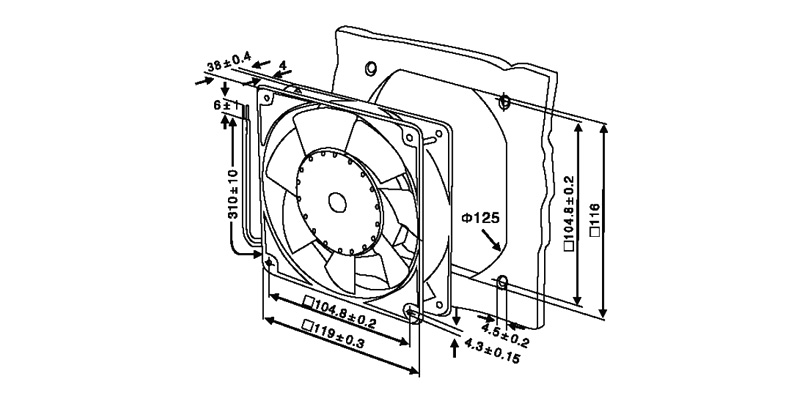

Dimensions
