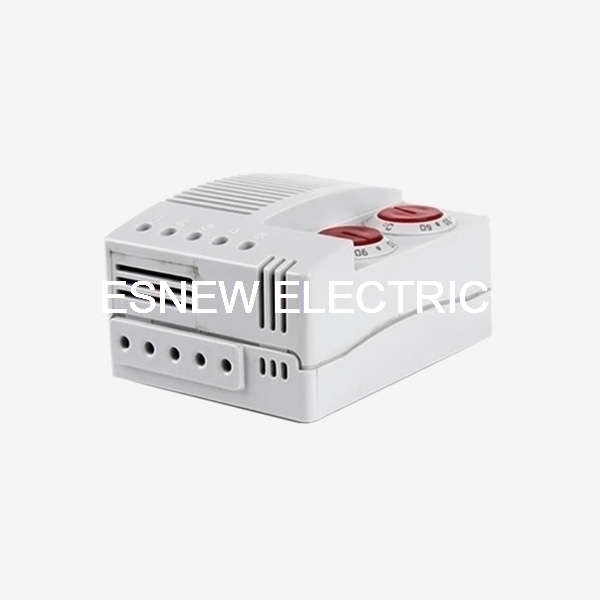

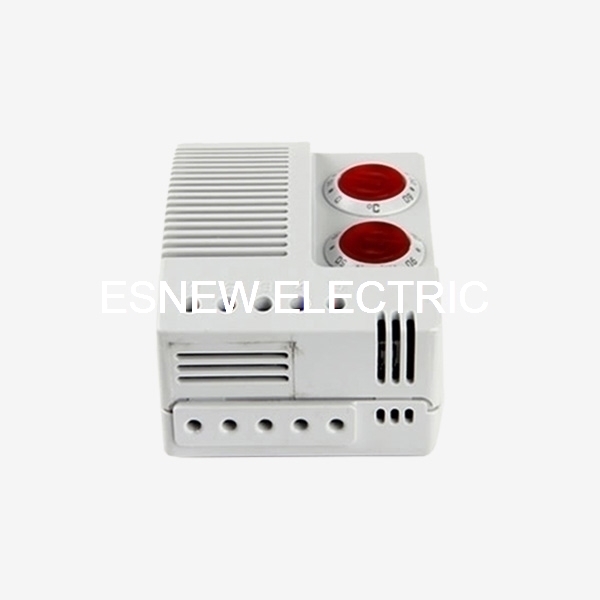

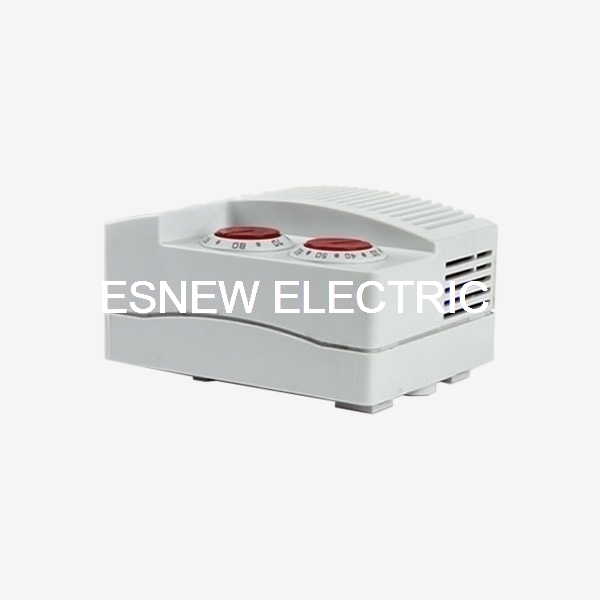

Product Description
1. Temperature and humidity adjustable
2. Optical operating display
3. High switching capacity
4. Clip fixing
| Technical Data | |
| Switch difference(temperature) | 2K (±1K tolerance) at25℃/77℉ (50%RH) |
| Switch difference(humidity) | 4%RH (1%tolerance) at25℃/77℉ (50%RH) |
| Reaction time(humidity) | Approx.5 sec. |
| Contact type | Change-over contact (relay) |
| Contact resistance | <10mΩ |
| Service life | NC:>50.000 cycles NO:>100,000 cycles |
| Max switching capacity (Relay output) | NC:240VAC,6(1)A NO:240VAC,8(1.6)A NC:120VAC,6(1)A NO:120VAC,8(1.6)A 24VDC,4A |
| EMC | Acc to EN 55014-1-2, EN 61000-3-2 EN 61000-3-3 |
| Optical indicator | LED |
| Connection | 5-pole terminal,clamping torque 0.5Nm max:rigid. wire 2.5mm2 stranded wire (with wire end ferrule)1.5mm2 |

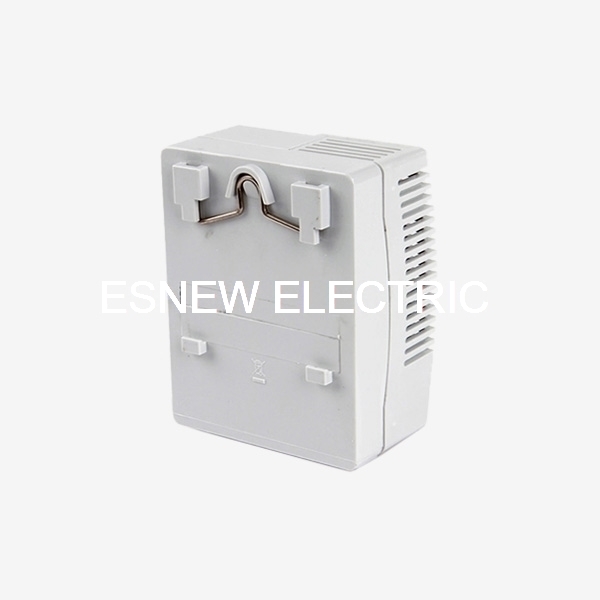

| Mounting | Clip for 35mm DIN rail.EN50022 |
| Casing | Plastic according to UL94 V-0 light grey |
| Dimensions | 77x60x43mm |
| Weight | Approx. 0.02kg |
| Fitting position | Variable |
| Operating/Storage temperature | 0 to+60℃ (+32 to+140℉)/-20 to+800℃ (-4 to+176℉) |
| Protection type | IP20 |

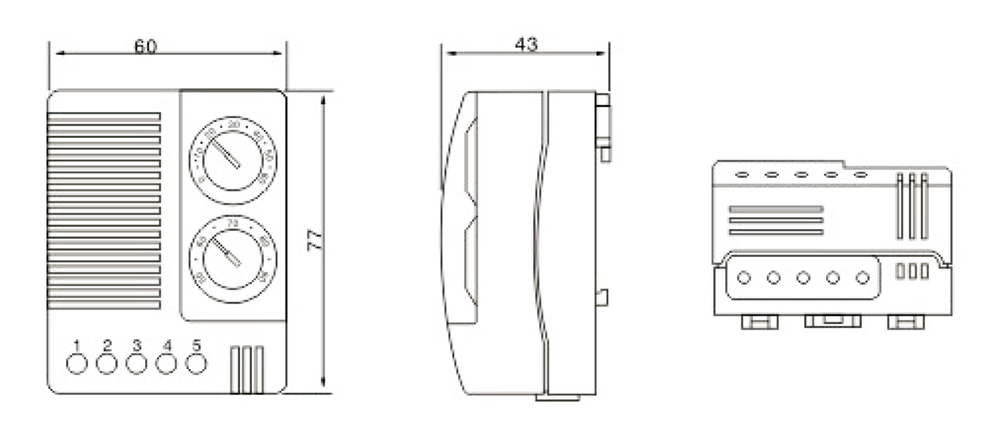

Drawing

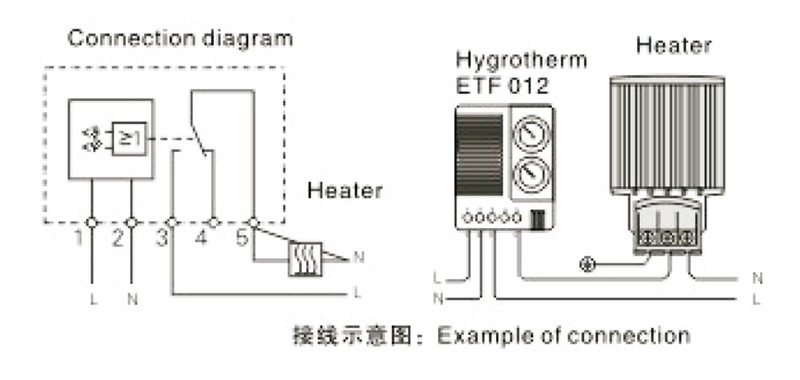

Example of connection
| Art.No | Operating votage | Setting range temperature | Setting range humidity |
| 01230.0-00 | 230VAC, 50/60Hz | 0 to+60℃ | 50 to 90%RH |
| 01230.9-00 | 120VAC, 50/60Hz | +32 to+140℉ | 50 to 90%RH |
| 01230.9-01 | 120VAC, 50/60Hz | 0 to+60℃ | 50 to 90%RH |
