Product Description
· Small size
· Default temperature settings
· Easy to install
· High switching tolerance

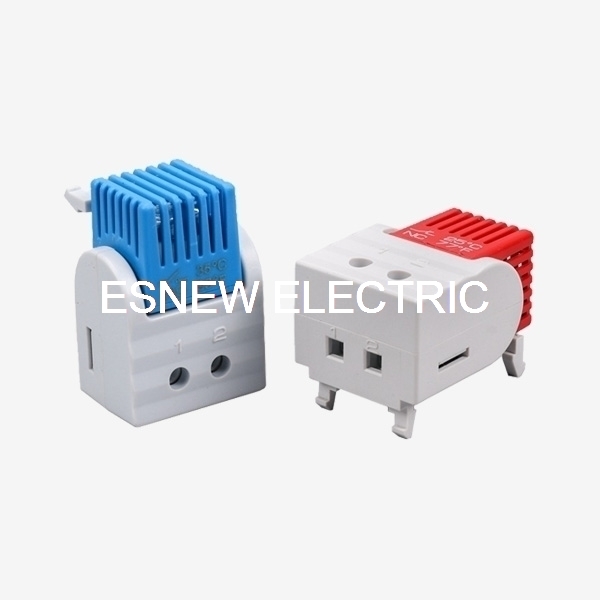

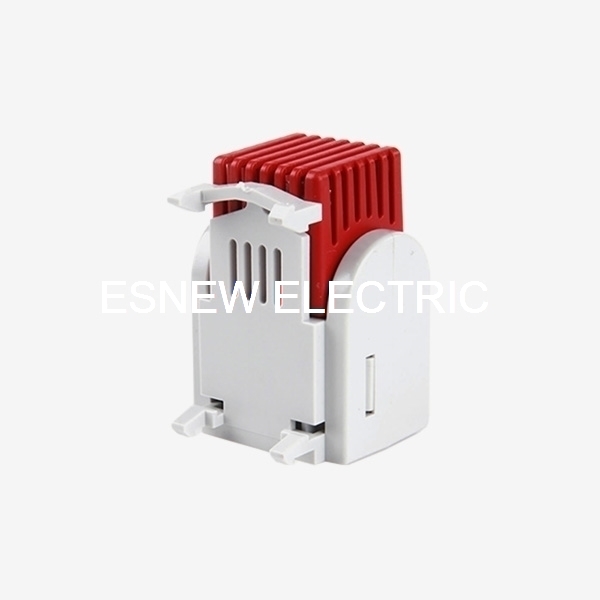

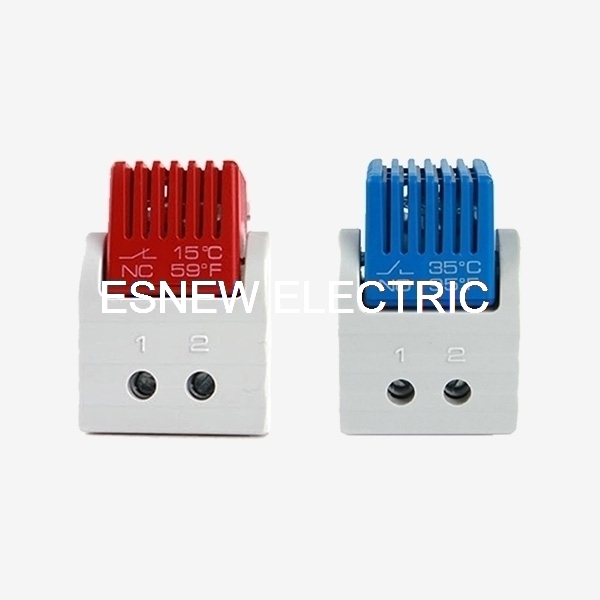

Tamperproof ( Pre-set ) Thermostat FTO 011
Contact breaker / NC ( red casing ) for regulating heaters or for switching signal devices when temperature has fallen below the minimum value. The contact opens Wnen temperatu re is rlsina.
| Technical Data | |
| Sensor element | Thermostatic bimetal |
| Contact type | Snap-action contect |
| Contact resistance | <20mΩ |
| Service life | >100,000 cycles |
| Max switching capacity | 250VAC,5(1.6)A 120VAC,10(2)A DC 30W |
| Max inrush current | AC 10A |
| EMC | acc to EN 55014-1-2, EN 61000-3-2 EN 61000-3-3 |
| Connection | 2-Pole terminal for 2.5mm2, torque 0.8Nm max |
| Mounting | clip for 35mm DIN rail. EN60715 or for exit filtyer EF 118 Series |
| Casing | plastic according to UL94 V-0 light grey |
| Dimensions | 47x33x33mm |
| Weight | Approx.23g |
| Fitting position | Variable |
| Operating / Storage temperature | -20 to+80℃ (-4 to+176℉) /-45 to+80℃ (-49 to+176℉) |
| Protection type | IP20 |

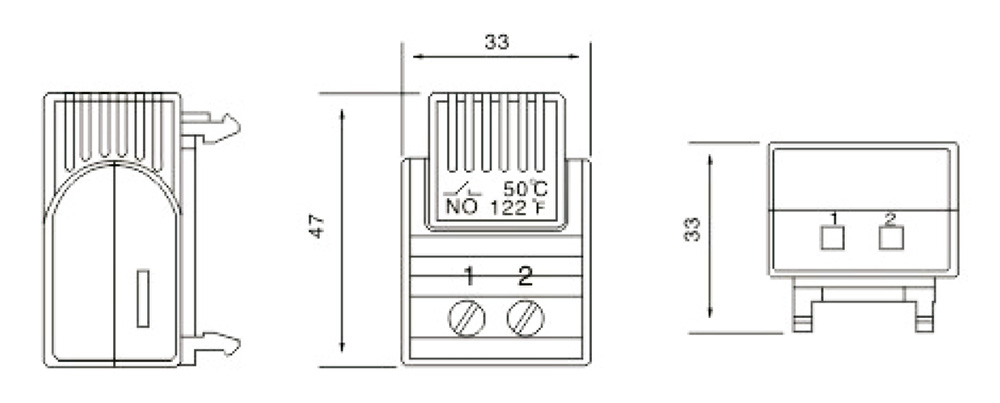

Drawing

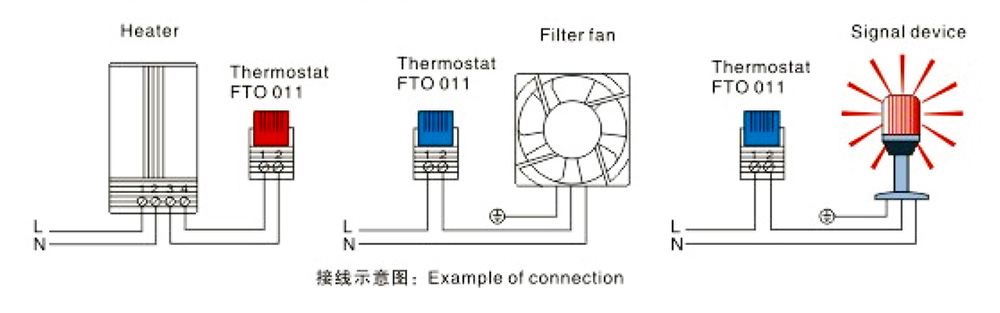

Example of connection
| Art.No | Contact | Switch-off temperature | Switch-off temperature |
| 01160.0-00 | Contact breaker(NC) | +15℃/+59℉(±5K tolerance) | +5℃/+41℉(±5K tolerance) |
| 01160.0-01 | Contact breaker(NC) | +25℃/+77℉(±5K tolerance) | +15℃/+59℉(±5K tolerance) |
| Switch-on temperature | Switch-off temperature | ||
| 01160.0-00 | Contact macker(NO) | +50℃/+122℉(±6K tolerance) | +40℃/+104℉(±7K tolerance) |
| 01160.0-01 | Contact macker(NO) | +60℃/+104℉(±6K tolerance) | +50℃/+122℉(±7K tolerance) |
| 01160.0-02 | Contact macker(NO) | +35℃/+95℉(±6K tolerance) | +25℃/+77℉(±7K tolerance) |
