Product Description

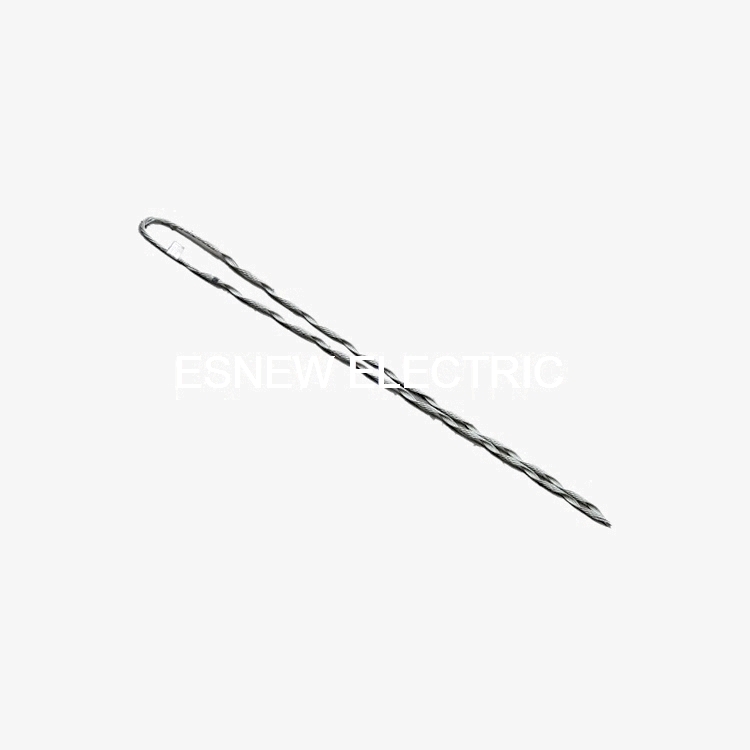

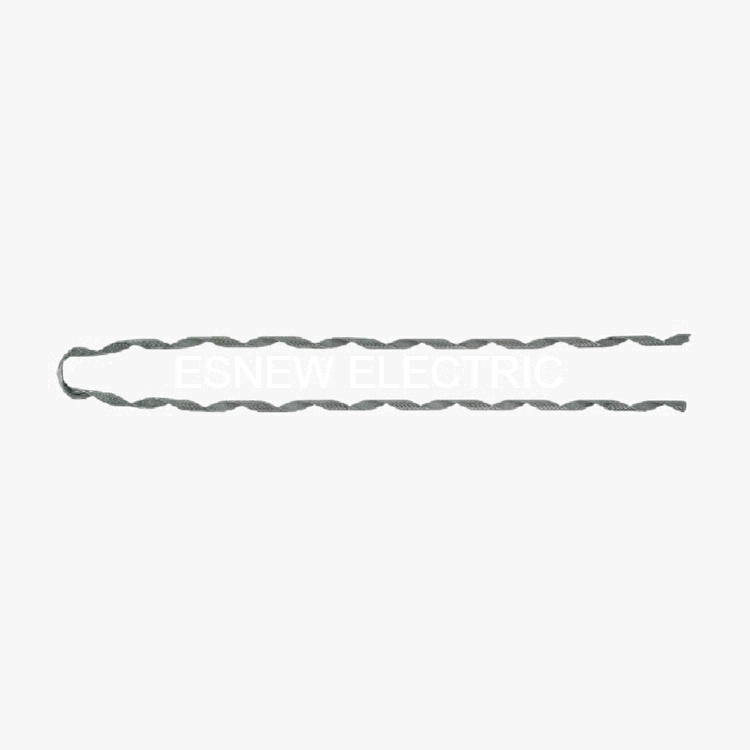

Preformed armour, guy wire fittings
| Name | preformed armour |
| Application | Power Accessories on power transmission, power Distribution, power station, etc. |
| Type and Size | All products types and sizes can be available |
| Material | Carbon Steel / Malleable Cast Iron |
| Finish | Zinc-plated / Hot dip Galvanized |
| Color | Silver white |
| Quality Certificate | ISO 9001 |
Product Detail
| Modle | Conductor | Dimensions(mm) | Nos of wires | Weight(kg) | |||
| Type | Outer dia(mm) | d | D | L | |||
| FTY-95/15 | LGJ-95/15 | 13.61 | 3.6 | 11.4 | 1400 | 13 | 0.53 |
| FTY-95/20 | LGJ-95/20 | 13.87 | 3.6 | 11.4 | 1400 | 13 | 0.54 |
| FTY-120/20 | LGJ-120/20 | 15.07 | 3.6 | 12.5 | 1400 | 14 | 0.57 |
| FTY-120/25 | LGJ-120/25 | 15.74 | 3.6 | 13 | 1400 | 14 | 0.58 |
| FTY-150/20 | LGJ-150/20 | 16.67 | 3.6 | 14.7 | 1500 | 16 | 0.65 |
| FTY-150/25 | LGJ-150/25 | 17.1 | 3.6 | 14.2 | 1500 | 16 | 0.64 |
| FTY-150/35 | LGJ-150/35 | 17.5 | 3.6 | 14.5 | 1500 | 16 | 0.66 |
| FTY-185/25 | LGJ-185/25 | 18.9 | 4.6 | 15.7 | 1800 | 14 | 1.25 |
| FTY-185/30 | LGJ-185/30 | 18.88 | 4.6 | 15.7 | 1800 | 14 | 1.26 |
| FTY-185/45 | LGJ-185/45 | 19.6 | 4.6 | 16.3 | 1800 | 14 | 1.26 |
| FTY-240/30 | LGJ-240/30 | 21.6 | 4.6 | 17.9 | 1900 | 16 | 1.44 |
| FTY-240/40 | LGJ-240/40 | 21.66 | 4.6 | 17.9 | 1900 | 16 | 1.44 |
| FTY-240/55 | LGJ-240/55 | 22.4 | 4.6 | 18.6 | 1900 | 16 | 1.5 |
| FTY-300/20 | LGJ-300/20 | 23.43 | 6.3 | 19.4 | 2000 | 13 | 2.3 |
| FTY-300/25 | LGJ-300/25 | 23.76 | 6.3 | 19.7 | 2000 | 13 | 2.33 |
| FTY-300/40 | LGJ-300/40 | 23.94 | 6.3 | 19.9 | 2000 | 13 | 2.34 |
| FTY-300/50 | LGJ-300/50 | 24.26 | 6.3 | 20.1 | 2000 | 13 | 2.34 |
| FTY-400/25 | LGJ-400/25 | 26.64 | 6.3 | 22.1 | 2200 | 14 | 2.8 |
| FTY-400/35 | LGJ-400/35 | 26.82 | 6.3 | 22.3 | 2200 | 14 | 2.8 |
| FTY-400/50 | LGJ-400/50 | 27.63 | 6.3 | 23 | 2200 | 14 | 2.8 |
| FTY-400/65 | LGJ-400/65 | 28 | 6.3 | 23.2 | 2200 | 14 | 2.83 |
| FTY-500/35 | LGJ-500/35 | 30 | 6.3 | 24.9 | 2500 | 16 | 3.48 |
| FTY-500/45 | LGJ-500/45 | 30 | 6.3 | 24.9 | 2500 | 16 | 3.48 |
| FTY-500/65 | LGJ-500/65 | 30.96 | 6.3 | 25.7 | 2500 | 16 | 3.5 |
| FTY-630/45 | LGJ-630/45 | 33.6 | 7.8 | 27.9 | 2500 | 15 | 5.32 |
| FTY-630/55 | LGJ-630/55 | 34.32 | 7.8 | 28.5 | 2500 | 15 | 5.4 |
| FTY-630/80 | LGJ-630/80 | 34.32 | 7.8 | 28.9 | 2500 | 15 | 5.4 |
