Product Description
· Compact
· Flat design
· High air through-flow
· Temperature safety cut-out
· Clip fixing

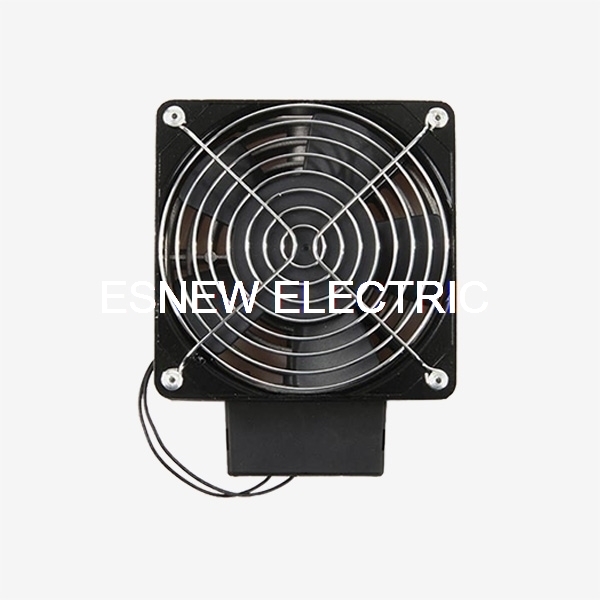

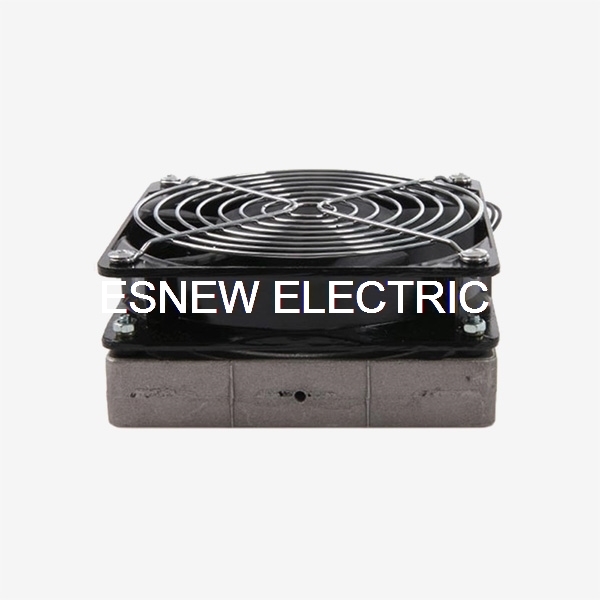

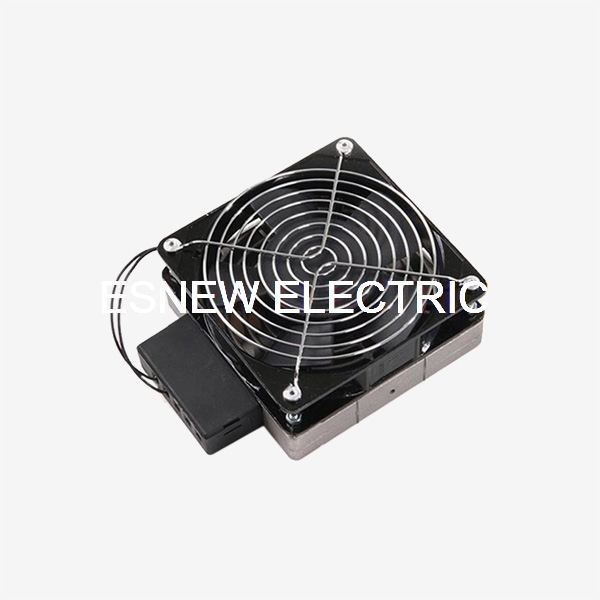

The compact high-performance fan heater prevents formation of condensation in control or switch systems and provides an evenly distributed interior air temperature in enclosures. This fan heater is available without fan ( HV 031 ) as well as with fan ( HVL 031 ).
| Technical Data | |
| HV 031 | Heater without fan ( fan mounting kit included ) |
| HVL 031 | Heater with fan |
| Heating element | High peeformance Cartridge |
| Temperature safety cut-out | To protect against overhating in case of fan failure |
| Heater body | Die-cast aluminium ( glass bead blasted ) |
| Connection | 3-pole screw connector 2.5mm2, clamping torque 0.8Nm max |
| Connection casing | Plastic according to UL94 V-0,black |
| Mounting | Clip for 35mm DIN rail, EN 50022 |
| Fitting position | Horizontal |
| Operating / Storage temperature | -45 to+70℃ (-49 to+158℉) |
| Protection type / Protection class | IP20/I ( earhed ) ＆IP54 |
| Approvals | E187294 ( VDE:230VAC only ) HVL 031 |
| HVL 031 only | Axial fan.ball bearing |
| Airflow see table | 50 000 at 25℃ |
| Connection ( axial fan ) | 2-pole screw connector 2.5mm2 (L2 / N2) |
Import! Heater may only be operated together with fan . Danger of overherheating!
| Art.No.HV 031 230VAC.50/60HZ | Art.No.HV 031 120VAC.50/60HZ | Heating capacity | Dimensions | Weight (approx.) |
| 03100.0-00 | 03100.9-00 | 100W | 80x112x22mm | 0.40kg |
| 03101.0-00 | 03101.9-00 | 150W | 80x112x22mm | 0.40kg |
| 03110.0-00 | 03110.9-00 | 200W | 119x151x22mm | 0.50kg |
| 03111.0-00 | 03111.9-00 | 300W | 119x151x22mm | 0.50kg |
| 03112.0-00 | 03112.9-00 | 400W | 119x151x22mm | 0.50kg |
| Art.No.HV 031 230VAC.50/60HZ | Art.No.HV 031 120VAC.50/60HZ | Heating capacity | Airflow min., free flow | Dimensions | Weight (approx.) |
| 03102.0-00 | 03102.9-00 | 100W | 35m3/h | 80x112x47mm | 0.60kg |
| 03103.0-00 | 03103.9-00 | 150W | 35m3/h | 80x112x47mm | 0.60kg |
| 03113.0-00 | 03113.9-00 | 200W | 108m3/h | 119x151x47mm | 0.90kg |
| 03114.0-00 | 03114.9-00 | 300W | 108m3/h | 119x151x47mm | 0.90kg |
| 03115.0-00 | 03115.9-00 | 400W | 108m3/h | 119x151x47mm | 0.90kg |
