Product Description
1. Adjustable relative humidity
2. Change-over Contact
3. High switching capacity
4. Easily accessible te rminals
5. Clip fixing
| Technical Data | |
| Switch difference | 4%RH(±3% tolerance) |
| Permissible air velocity | 15m/sec |
| Contact type | change-over contact |
| Contact resistance | <10mΩ |
| Service life | >100000 cycles |
| Min switching capacity | 20V AC/DC 100mA |
| Max switching capacity | 250VAC,5(1)A DC 20W |
| EMC | acc to EN 55014-1-2,EN 61000-3-2 EN 61000-3-3 |
| Connection | 3-pole terminal for2.5mm. clamping torque 0.5Nm max: rigid wire 2.5mm2. stranded wire (with wire end ferrule) 1.5mm2 |
| Mounting | clip for 35ram DIN rail,EN50022 |
| Casing | plastic according to UL94 V-0, light grey,UL94 V-0 |
| Dimensions | 67x50x38mm |
| Weight | Approx.60g, |
| Fitting position | Variable |
| Operating/Storage temperature | 0 to+60℃(+32 to+140℉)/-20 to+80℃(-4 to+176℉) |
| Protection type | IP20 |
| *at 50%RH | |

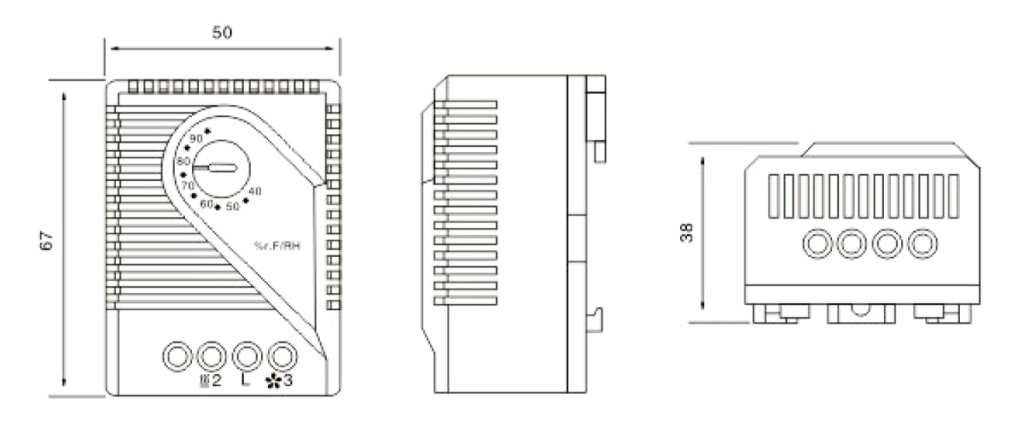

Drawing and Installation

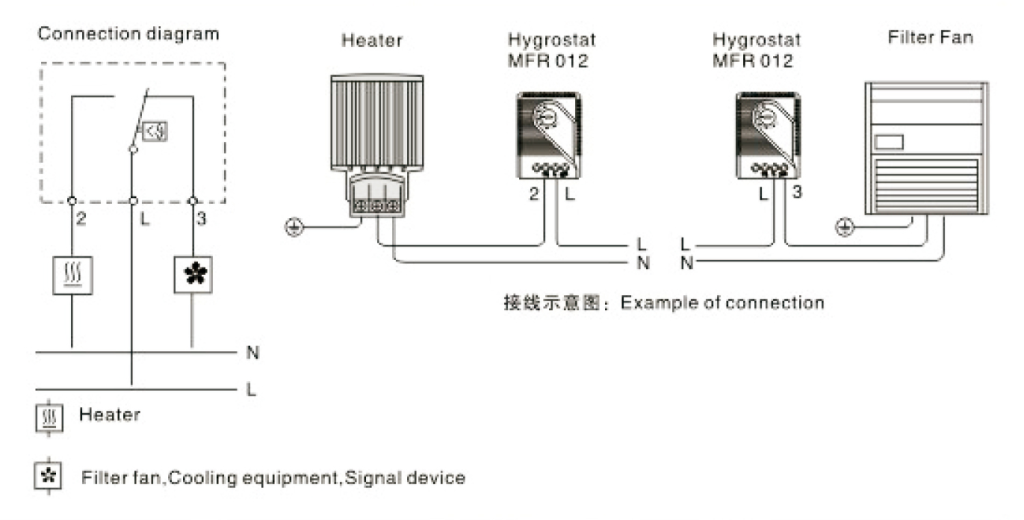

Example of connection
| Art.No | Setting range humidity |
| 01220.0-00 | 35 to 95%RH |
