Product Description

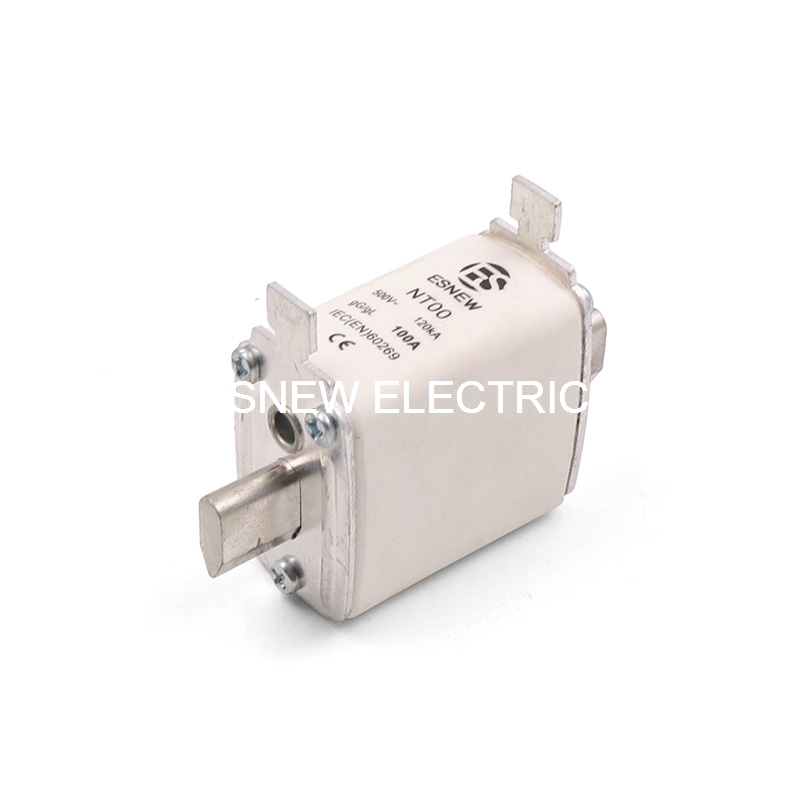

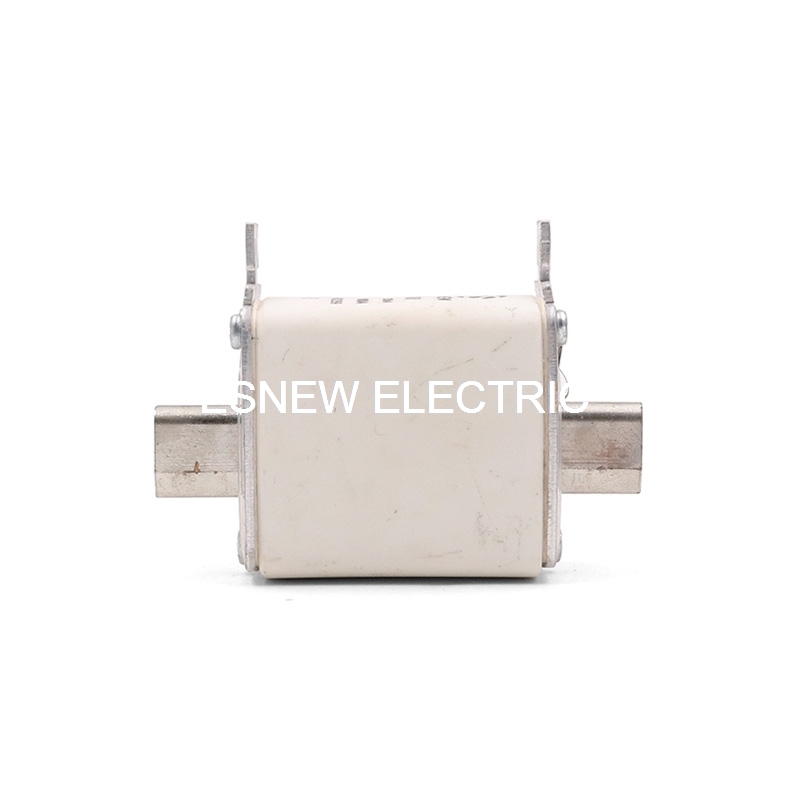

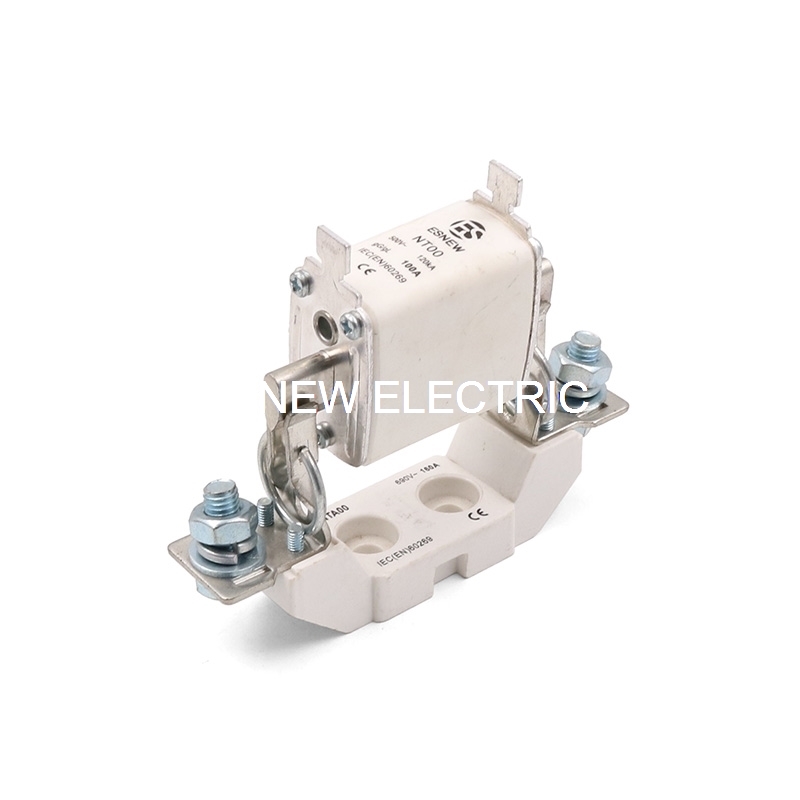

The HRC fuse link is applicable indusrtial electrical distributing installation of AC50Hz (or60Hz) rated voltage 500/690V and 400V, rated current 1250A and below. It is provided with the function of the protection against overload or short circuit.
Product parameter
| Type | NT00 | |
| Rated current | A | 6,10,16,20,25,32,35,40,50,63,80,100,125,160 |
| Rated voltage | V | 500 |
| Rated breaking capacity | kA | 120 |
| Rated power loss | W | 0.41,0.62,0.81,1.08,1.60,1.81,2.31,3.07,3.17,4.05,4.25,4.70,5.7,7 |
| Standard specification | IEC 60269 EN 60269 | |
| Class | Gg-gl |
Dimensions

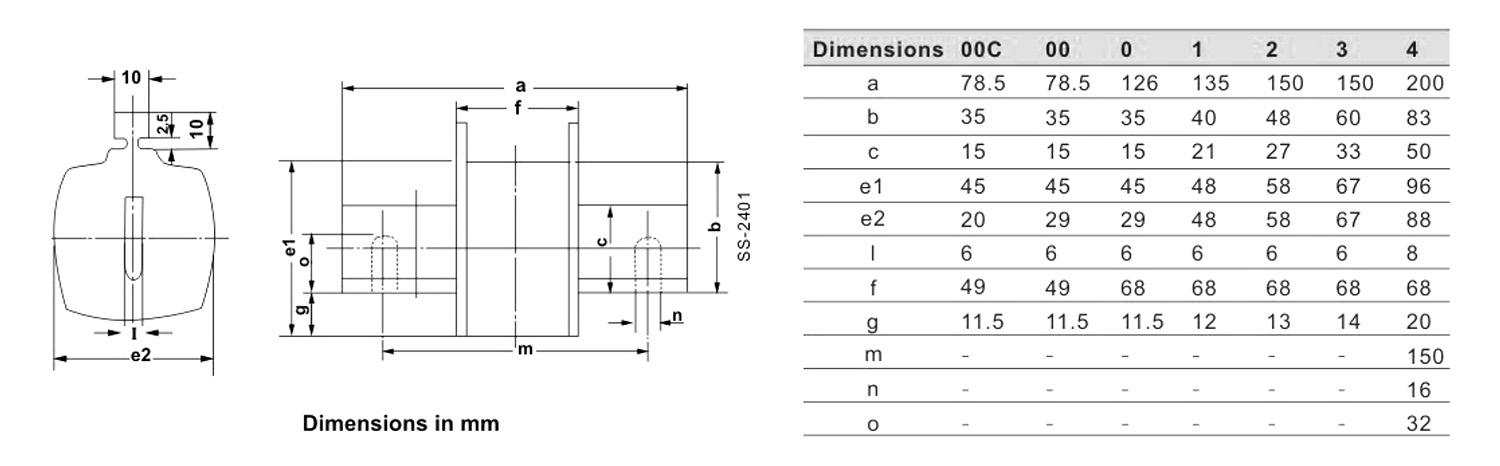

1. Fuse link NH/NT Type

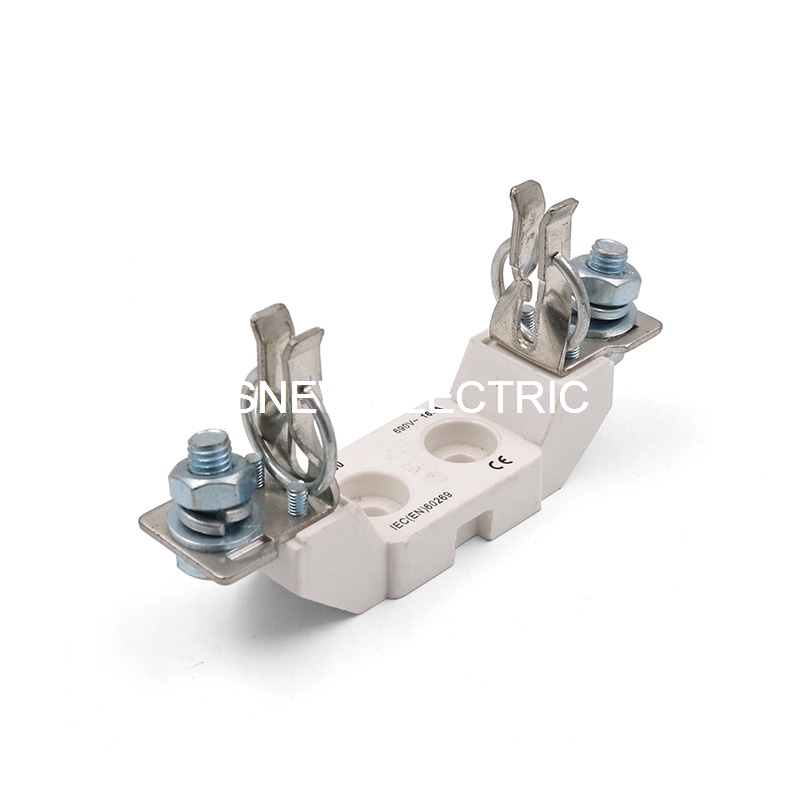

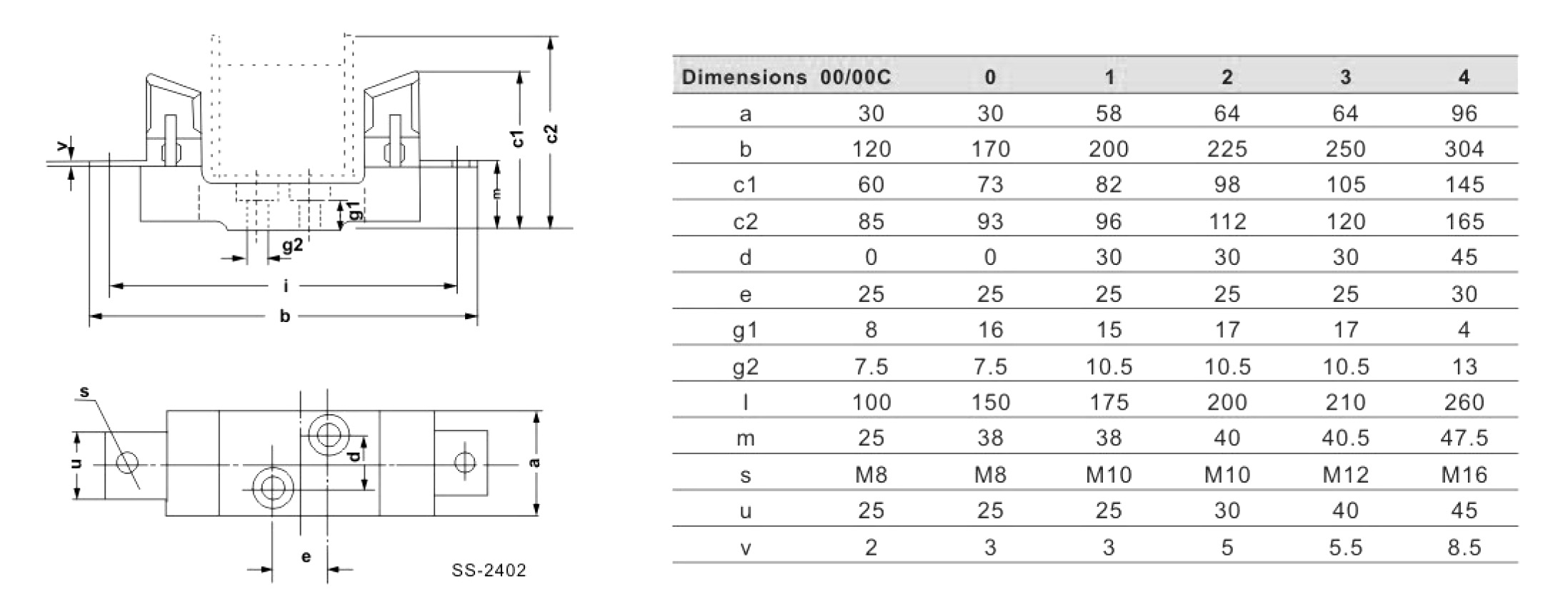

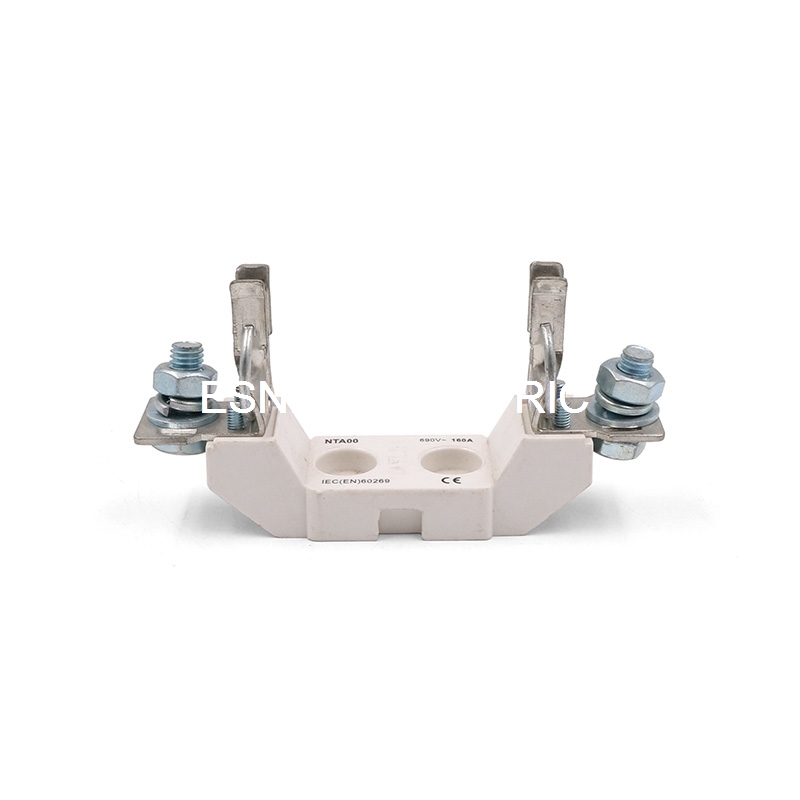

2. Fuse base
