Basic Info.
| Model NO. | NT2 | Trademark | ESNEW |
| Breaking Capacity: | High | Type: | Current Fuse |
| Usage: | Low Voltage | Shape: | Square |
| Fusing Speed: | T | Fusing Device: | Pop-up Solid |
| Standard | VDE | Origin | China |
| HS Code | 8536100000 |
Product Description

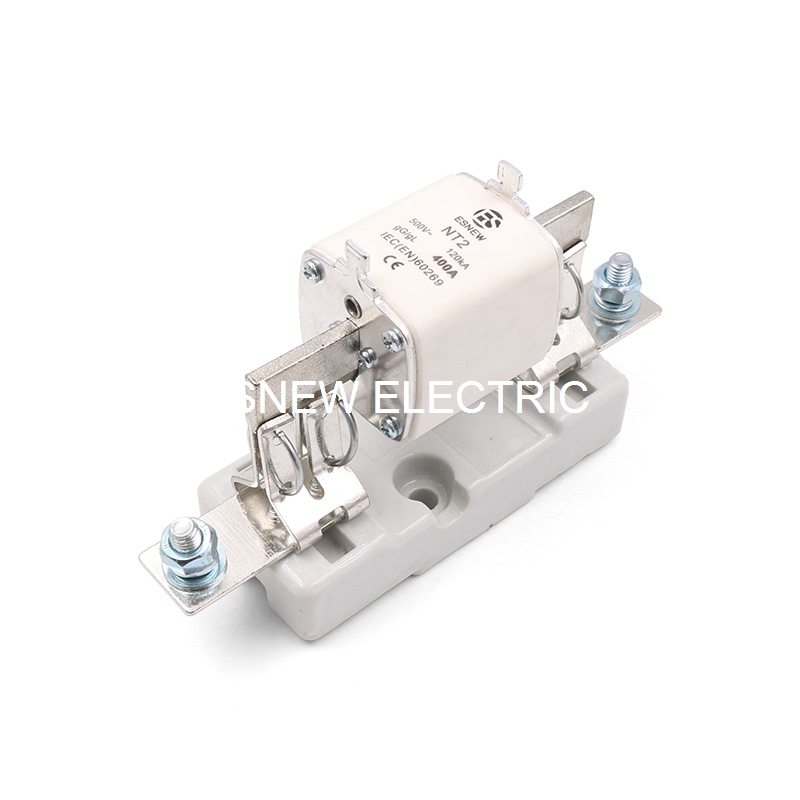

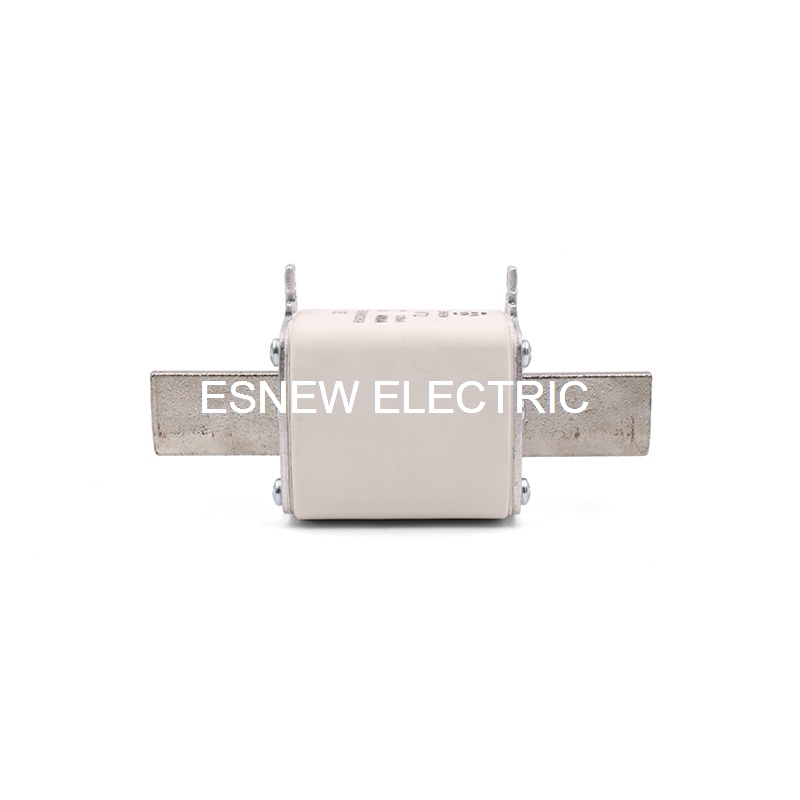

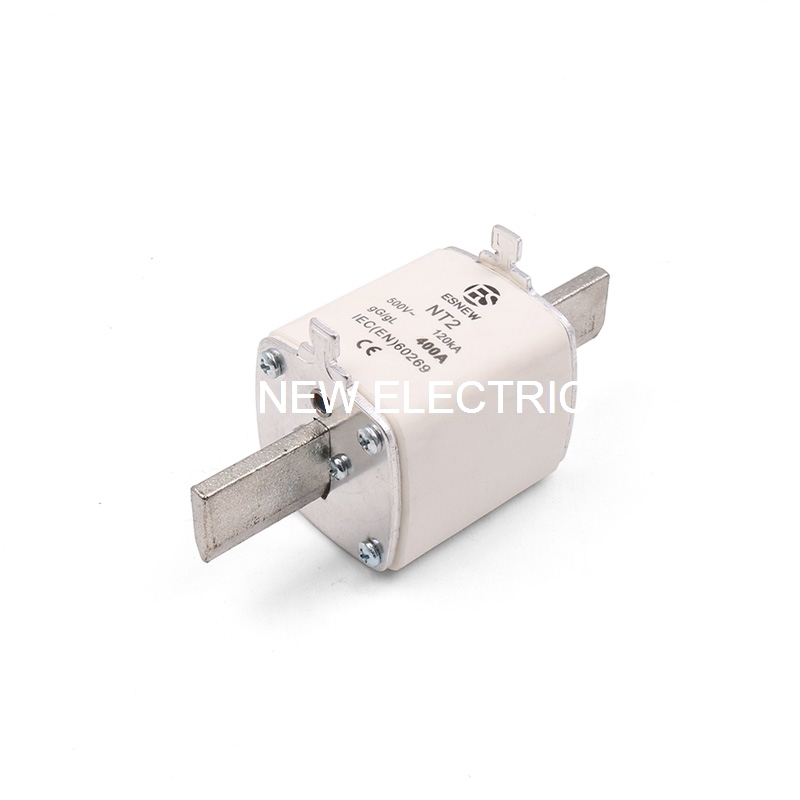

The HT series fuse link is applicable indusrtial electrical distributing installation of AC50Hz (or60Hz) rated voltage 500/690V and 400V, rated current 1250A and below. It is provided with the function of the protection against overload or short circuit.
Product parameter
| Type | NT2 | |
| Rated current | A | 125,200,224,250,315,355,400, |
| Rated voltage | V | 500 |
| Rated breaking capacity | kA | 120 |
| Rated power loss | W | 9,11.5,15,16.6,18.4,21,19.2,24.5,26 |
| Weight | kg | 0.65 |
| Standard specification | – | IEC 60269 EN 60269 |
| Class | – | Gg-gl |
