Product Description
Inner temperature controller for switchgear cabinet
Especially used for controlling fan filter, heater and exchanger. also could be monitoring the electric cabinetinner temperature when working as signal arcuser .
Technical Data
“Make bimetal sensor as heat sensitivity set to feedback of heat.”
“Contact point scheme:single switch over contact point as instant switch component allowed load of contact point”
KL5-3 ACIO(4)A
DC=30W KL5-4(Cooling)
AC5(4)DA DC=30W
(D)=Sensitivity load at COSφ=0.6
· Adjusting range:+50℃ to+60℃
· Weight:105gappr
· Size:70x70x33.5mm
· Switch discrepancy”1K±0.8K
· Voltage scope is wide,any type could be used from 24V of 230V
· Time-saving connection.terminal block could be installed with screw from outside
· Easy installation.could be installed to 35mm din rail vertically or horizontally.According to En50022.it could be clipped to NS/35-ES cabinet profile its accessory adapter.
Temperature regulation range: + 5 ℃ + 60 ℃
Weight: 105 G
Appearance size: 70 × 70 × 33.5mm

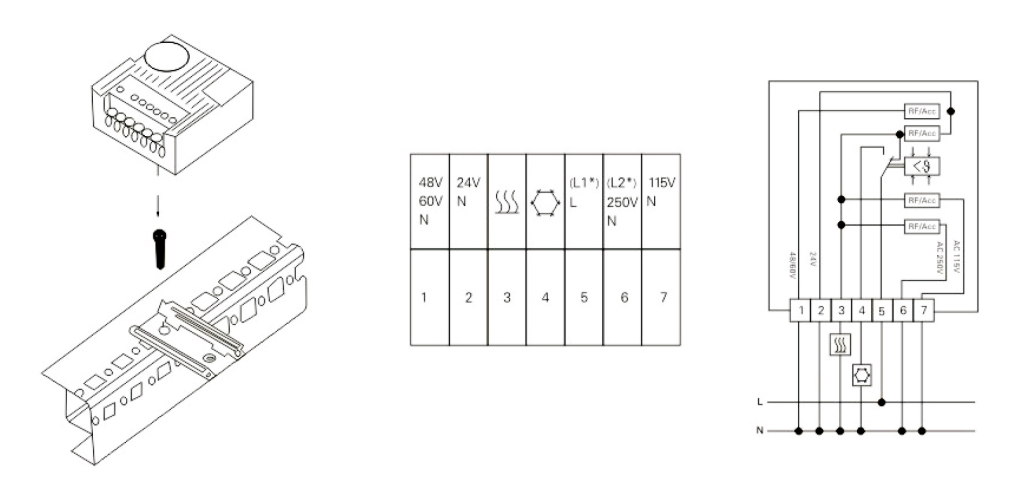

Drawing
