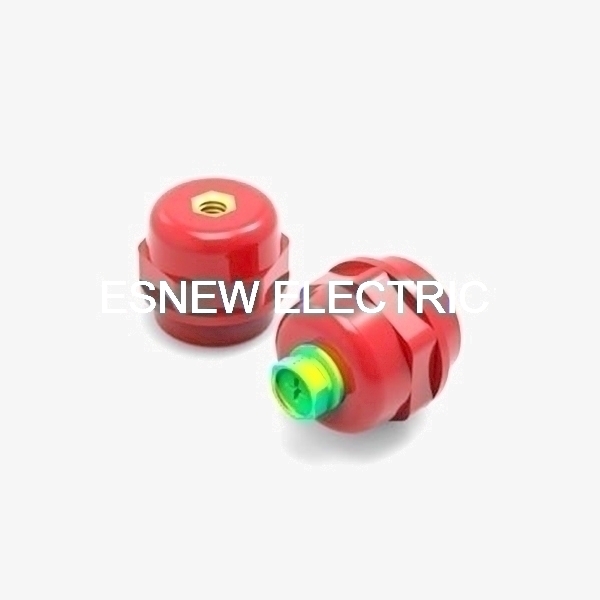

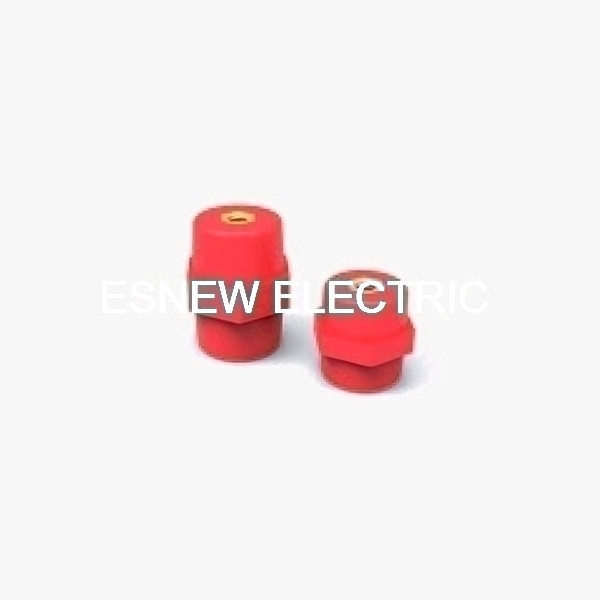

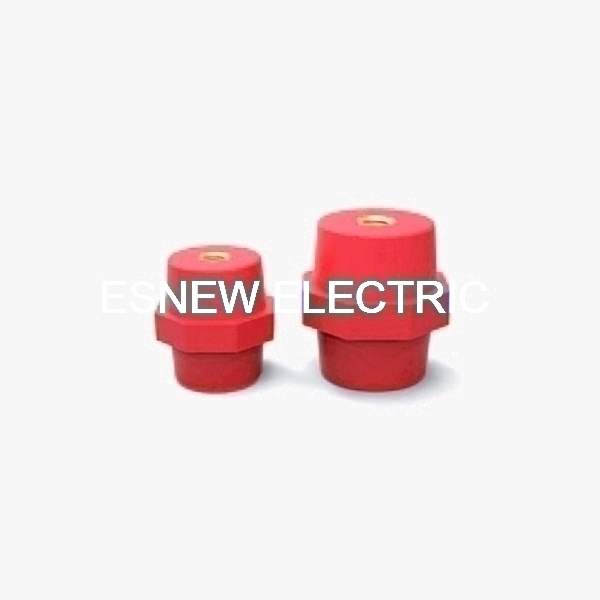

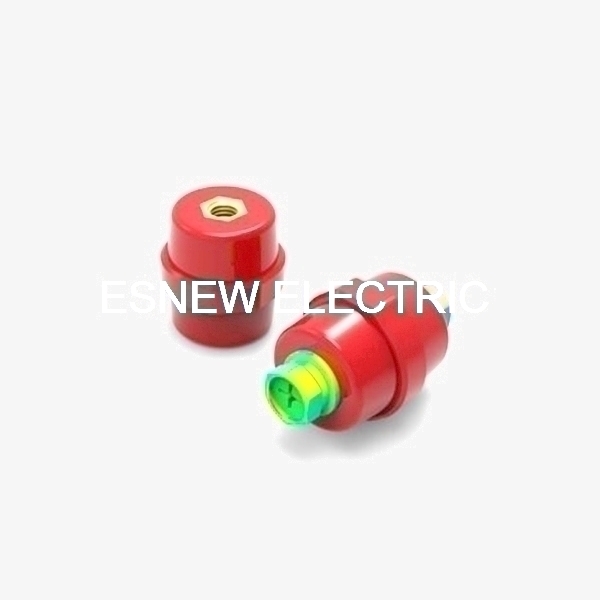

SM Bus bar Support Insulator

This low voltage busbar insulator series is manufactured from Bulk Molding Compound (BMC/DMC), an unsaturated polyester resin reinforced with fiberglass. It offers excellent mechanical strength, electrical insulation, and durability, making it ideal for supporting and insulating bus bars in low voltage electrical systems.

The SM Bus Bar Support Insulator is a high-performance electrical insulating component designed to provide secure mechanical support and electrical insulation for bus bars in power distribution systems. Engineered for strength, stability, and durability, this insulator is widely used in low- and medium-voltage switchgear, panel boards, control cabinets, and electrical enclosures.

SM Bus bar Support Key Features:

  • High Mechanical Strength
    Made from reinforced thermosetting materials, the SM insulator offers excellent compressive and tensile strength to support heavy copper or aluminum bus bars without deformation.
  • Superior Electrical Insulation
    Designed to withstand high voltages and prevent current leakage, ensuring safe and stable power distribution.
  • Heat and Flame Resistance
    With excellent thermal stability and flame-retardant properties, it performs reliably in demanding operating environments.
  • Corrosion and Moisture Resistant
    Ideal for indoor and outdoor applications, including humid and corrosive environments.
  • Precision Design
    Available in multiple sizes and mounting configurations for easy installation and firm grip of bus bars.

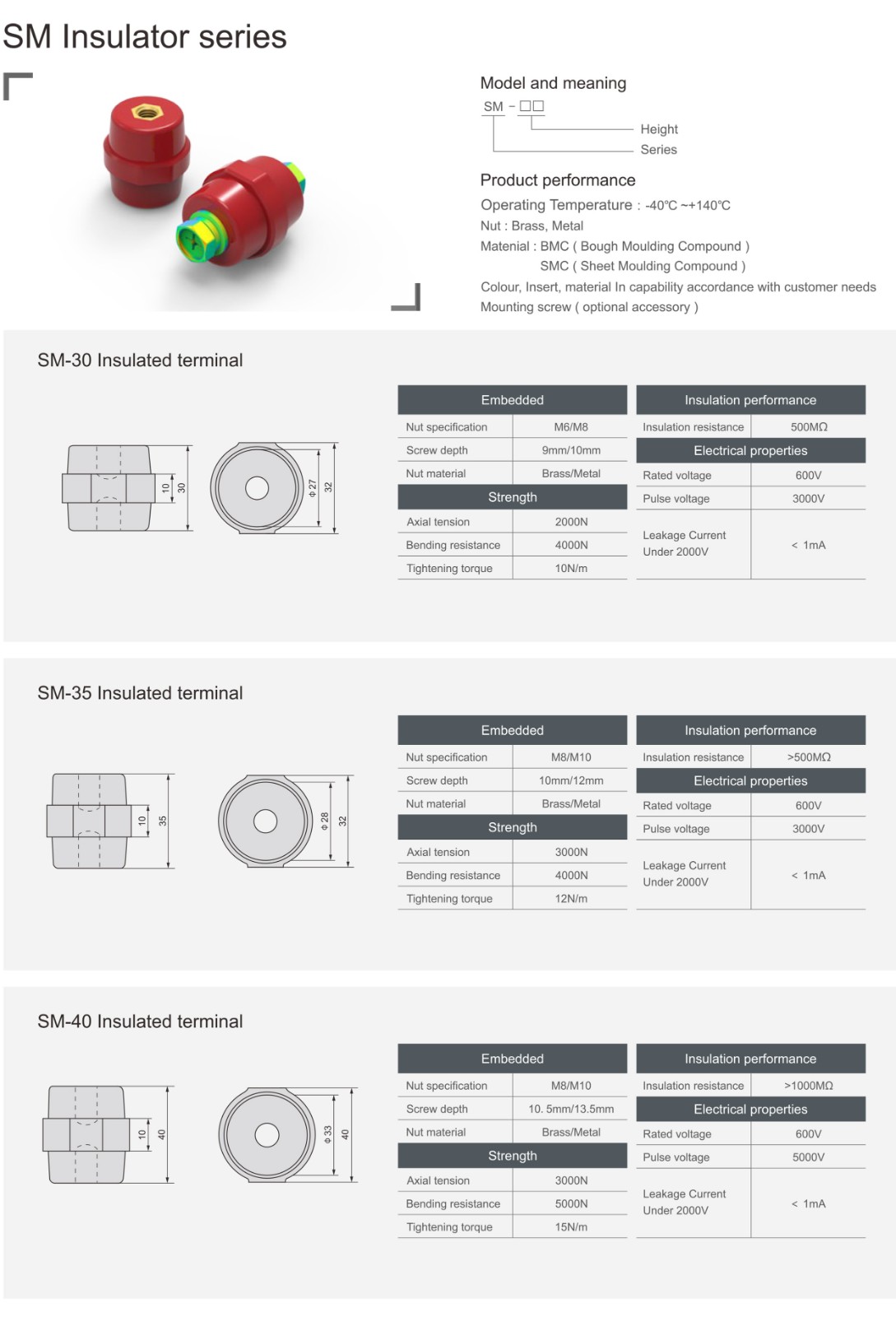

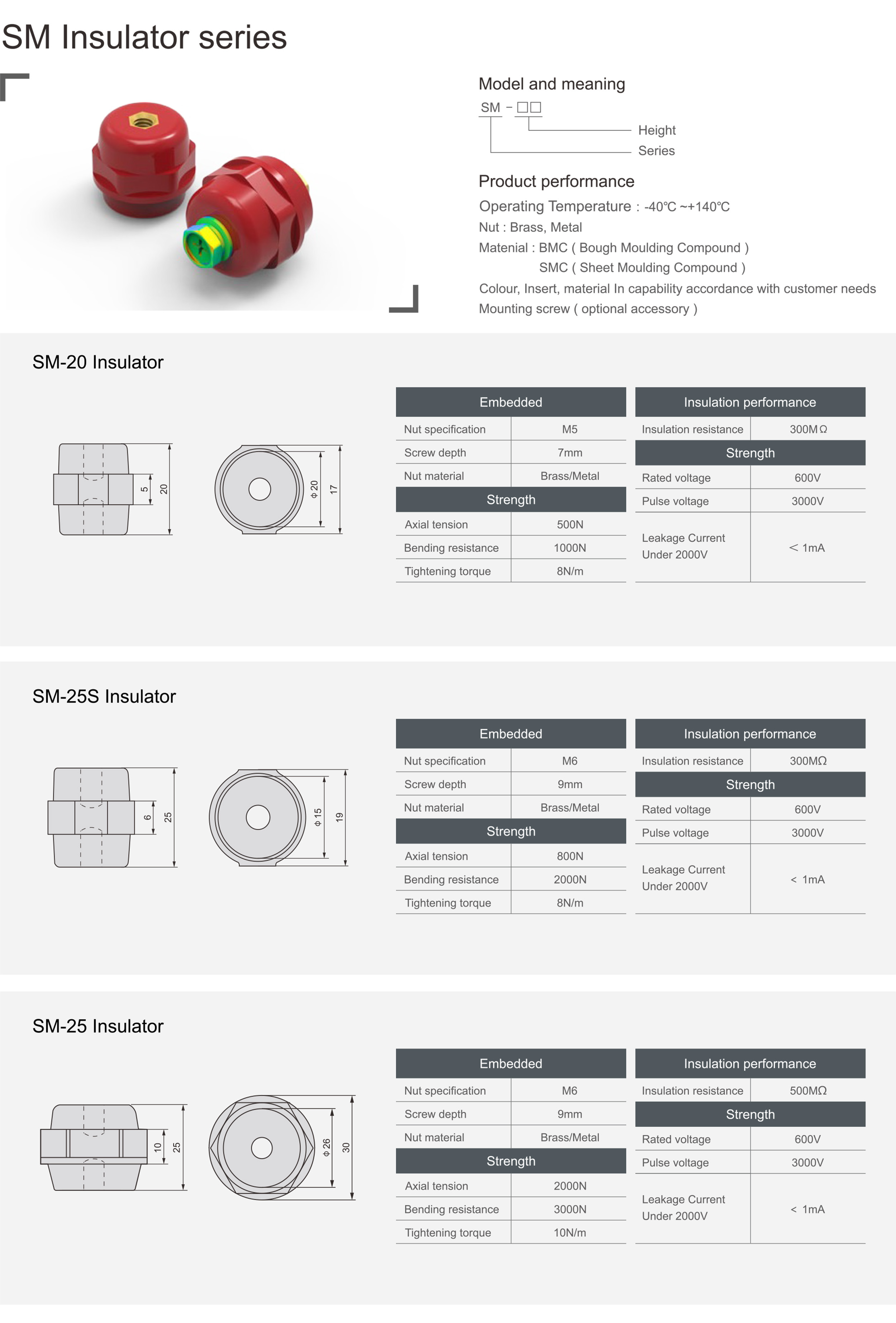

Specifications:

  • Material: DMC / BMC / Epoxy Resin (customizable)
  • Voltage Rating: Up to 1000V or higher upon request
  • Operating Temperature: -40°C to +130°C
  • Color: Red (standard); other colors available upon request
  • Thread Type: M6, M8, M10, etc.
  • Mounting Options: Single or double-end threaded; base mount optional

SM Bus bar Support Applications:

  • Power Distribution Panels
  • Low and Medium Voltage Switchgear
  • Electric Control Cabinets
  • Renewable Energy Systems
  • Electrical Substations
  • Generator and Inverter Systems

Why Choose Our SM Bus Bar Support Insulator?

Our insulators are manufactured to strict quality standards to ensure long service life, safety, and high performance in all electrical applications. Whether you’re managing a large-scale industrial project or building compact switchgear units, our SM insulator provides the reliable insulation and structural integrity your system requires.

Parameters

Model NO.SMBrandEsnew
Size of Bearing Capacity100KNCertificationCE
ColorRedApplication:Low-voltage
Material:Composite PolymerStructure:Shackle Insulator
Type:A Type InsulatorConnection Method:Trough Type
Usage:High Voltage Power Transmission, Insulation,   Electrical InstallationHS Code8546900000
SM Bus bar Support
