Basic Info.
| Model NO. | TJ | Brand | ESNEW |
| Type: | Single Hole Terminals | Material: | Copper |
| Application: | Conduct Electricity | Character: | Environmental Protection |
| Species: | Terminal | Production Process: | Cold Pressing |
Product Detail
Material:Brass
Surface treatment:Tin plated or copper plated on request

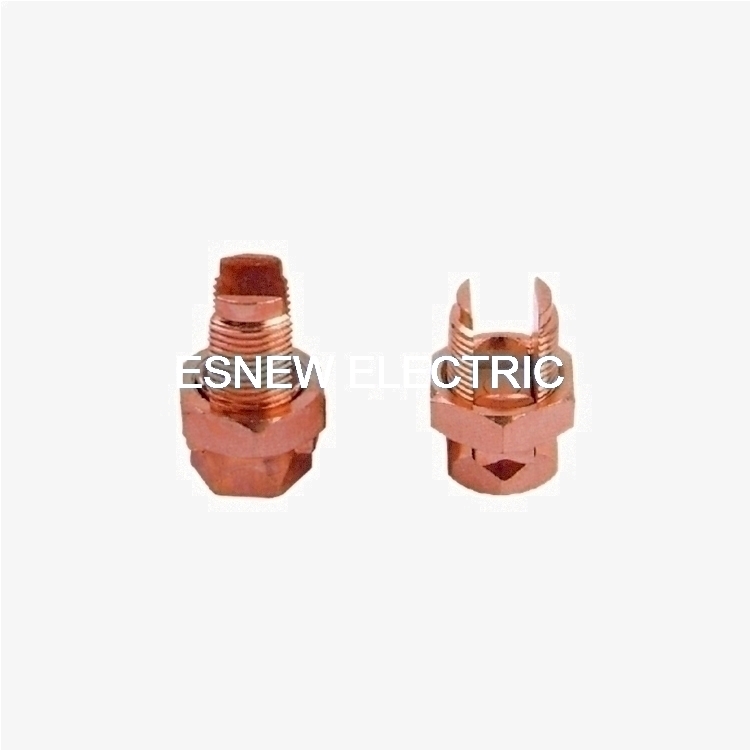

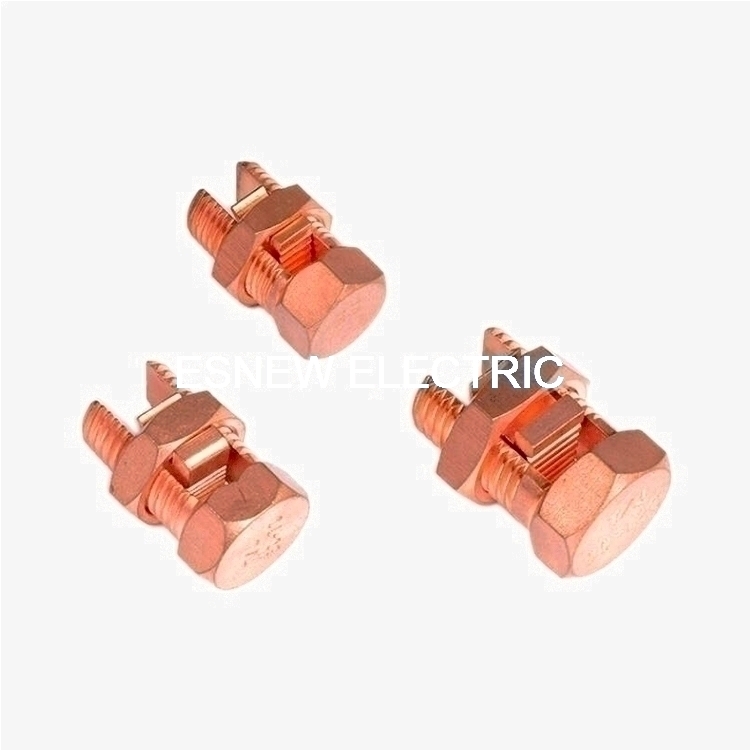

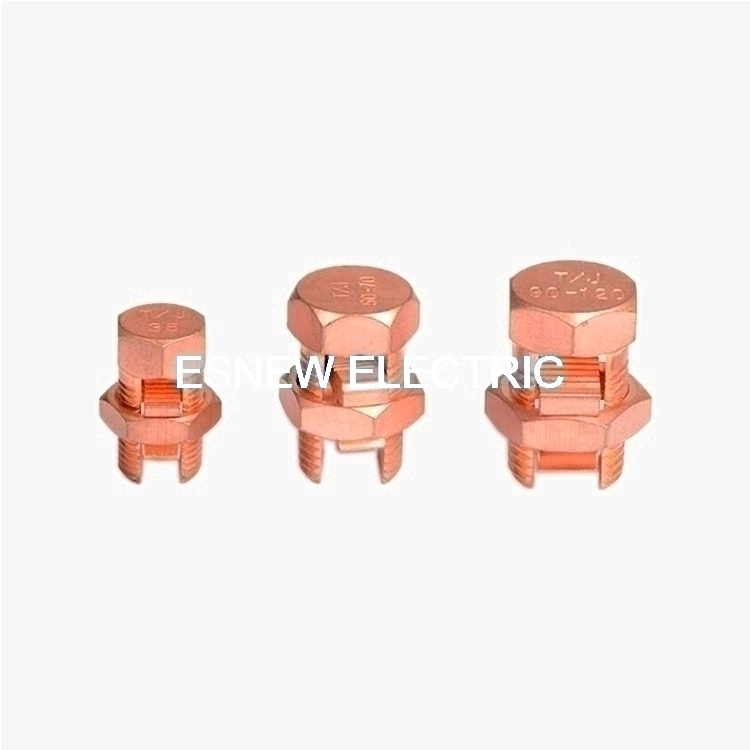

Product Property:It is used to branch or connect a erial hard copper conductor or insulated copper conductor.
| Type | Dimensions(mm) | |||
| L | D | B | Screw Thread | |
| TJ 16-35 | 38 | 17 | 8.5 | 5/8-18UNF-2A |
| TJ 25-50 | 42 | 19 | 10 | 3/4-16UNF-2A |
| TJ 50-70 | 46 | 21 | 11 | 3/4-16UNF-2A |
| TJ 95-120 | 50 | 26 | 14.5 | 1-12UNF-2A |
| TJ 150-185 | 60 | 30 | 17.2 | 1 3/16-12UNF-2A |
| TJ 200-240 | 45 | 32 | 19.3 | 1 1/4-12UNF-2A |
| TJ 10 | 27 | 13 | 5 | 1/220UNF-2A |
| TJ 16 | 30 | 14 | 6 | G1/4 |
| TJ 25 | 32 | 17 | 7 | 5/8-18UNF-2A |
| TJ 35 | 38 | 17 | 8.5 | 5/8-18UNF-2A |
| TJ 50 | 42 | 19 | 10 | 3/4-16UNF-2A |
| TJ 70 | 46 | 21 | 11 | 3/4-16UNF-2A |
| TJ 95 | 46 | 26 | 14.5 | 1-12UNF-2A |
| TJ 120 | 50 | 26 | 16.5 | 1-12UNF-2A |
| TJ 150 | 55 | 30 | 17.2 | 1 3/16-12UNF-2A |
| TJ 185 | 60 | 30 | 19.3 | 1 3/16-12UNF-2A |
| TJ 240 | 65 | 32 | – | 1 1/4-12UNF-2A |
